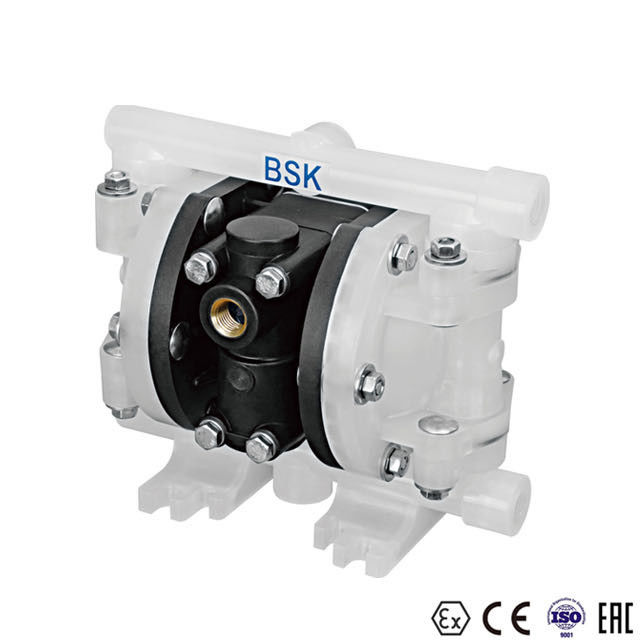

휴대용 공기 구동 두 배 격막 펌프 화학 공업 사용

휴대용 공기 구동 두 배 격막 펌프 화학 공업 사용

공기 구동 두 배 격막 펌프 소개

공기 구동 두 배 격막 펌프는 일 위치에 pumpers의 얼굴 수많은 문제를 결심하기 위하여 디자인되었습니다. 당신은 공간을 제한하거나, 혼합 고체 구성을 가진 액체를 이동하고 있다는 것을, 당신의 일을 위해 안전한 프라이밍 펌프 체계를 요구하십시오, 우리의 AOD 펌프는 휴대용 일을 끝내기 위하여 해결책을 제공합니다.

이중 격막 유동성 약실을 통해서 운영해서, 긍정적인 진지변환은 최소 노력으로 빠른 프라이밍을 개시하는 공기 진공을 창조합니다. 일단 뇌관을 다는, 운영한 격막 펌프를 1 ¼ 인치까지 고체 (90%까지 단단한 구성)와 25,000 CP를 초과하는 등급을 가진 높게 점성 액체 통과 가능합니다 바람쐬십시오. 어떤 취업 신청서든지를 위한 다재다능한 펌프가 AOD 펌프의 유동성 취급에 의하여, 휴대 가능 그리고 내구성은 그(것)들에게 합니다.

공기 구동 두 배 격막 펌프 묘사:

공기 구동 두 배 격막 펌프 포장 & 납품

공기 구동 두 배 격막 펌프 특징

1. 비 누설
2. 좋은 각자 프라이밍 성과
3. 온갖 매체를 전하십시오
4. 물자: 주철강, Alu, SS, PP

2 5 x x - X X x - X (모형 선택)

관 입의 형성하십시오: A-BSP B-NPT (F) C 플랜지

격막 물자: 9 – Santoprene H – Hytrel T - PTFE/Santoprene

공 물자: 9 - Santoprene H – Hytre T – PTFE A - 아세탈

공 좌석 물자: P/K – 폴리프로필렌/Kynoar SS – 스테인리스

펌프 물자: SS – 스테인리스 알루미늄 – 알루미늄 합금 CI- 탄소 강철 P/K – 폴리프로필렌/Kynoar

주요 성능 매개변수

아니 매개변수 이름 단위 기준값

1 최대. 작동되는 공기의 압력 Mpa 0.83

2 최대. 교류 l /min 135

3 최대. 머리 m 70

4 최대. 유동성 산출 압력 Mpa 0.83

5 최대. 직경 mm 3을 통해서 입자

6 무게 kg 9.5/12.5 (PP/KV) /9.5 (알루미늄)/14.5 (SS/CI)

7 잡음 레벨 db <85>

최대 적용되는 온도 한계 (격막/공/물개 물자)

아세탈 ···············································40° - 150°F (4.4 - 65.5°C)

Santoprene························································································- 40° - 225°F (- 40° - 107.2°C) 테플론··································································································40° - 220°F (4.4° - 104°C) 니트릴···································································································10° - 180°F (- 12° - 82°C) Viton································································································- 40° - 350°F (- 40°-176.6°C) Hytrel···································································································- 20°-150°F (- 12° - 93°C) Kynar································································································10°-200°F (- 28.9° - 65.5°C) 폴리프로필렌····························································································32° - 175°F (0-79.4°C)

공기 구동 두 배 격막 펌프 세부사항
